用途与特点:

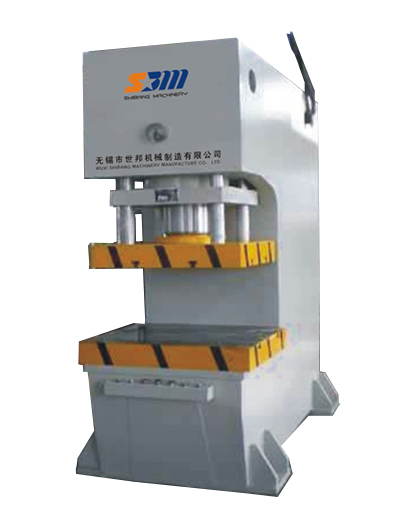

该系列液压机为“C”型单柱结构,机身全钢焊接。液压系统布置在机身内,工作台下部设有液压垫。电气控制系统采用“PC”可编程序控制器。按钮集中控制,可实现调整、手动、半自动操作方式。该系列液压机适用于金属材料的拉伸、冲裁、弯曲、翻边、校正、压装、冷热挤压等工艺,也可适用于粉末制品、塑料制品的压制成型。
C型单臂式机身结构,操作方便。液压系统置于机身内部,工作台下部设有液压垫,工作压力行程可在规定范围内调节。适用于金属零件的拉伸、弯曲、压印、落料、校正、压装等工艺,也可适用于一般粉末制品、磨料制品的成型以及塑料制品、绝缘材料的压制成型。
可选附件:
●辅助工作台
●精密校直系统
●光电保护装置
●触摸式工业显示屏
●比例调速系统
●液压系统加热
●冷却装置
●打料装置
●PLC可编程控制器
Use end and characteristics:
The series hydraulic press is C-frame Single-pillar structure and the whole machine body is jointed with steel. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic cushion. The electric control system applies “PC” program controller with button central controlled to achieve adjusting, manual and semi-automatic operation. The series hydraulic press applies to techniques including the drawing, punching, bending, crimping, amendment, pushing mounting, cold and hot extrusion, etc of metal materials as well as powder and plastic products for press forming.
The operation is very convenient with C-frame single arm structure. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic base. Working press stroke can be adjustable within the specific range. The series hydraulic press applies to techniques including the drawing, bending, incusing, blanking, amendment, pushing mounting, etc of metal parts as well as the forming of general powder and abrasive products, plastic products and insulating materials for press forming.
Optional accessories:
●Accessorial worktable
●Precise straightening system
●Photo-electrical protection device
●Touch style industry screen
●Rate speed regulation system
●Hydraulic system heating
●Cooling device
●Ramming mixes device
●PLC Programmable Logic Controller
产品参数:
参数名称Parameter | 单位Unit | ZBJ-DD-10 | ZBJ-DD-16 | ZBJ-DD-25 | ZBJ-DD-40 | ZBJ-DD-63 | ZBJ-DD-100 | ZBJ-DD-150 |
公称压力Nominal pressure | KN | 160 | 160 | 250 | 400 | 630 | 1000 | 1500 |
滑块行程Stroke of Slide block | mm | 300 | 350 | 350 | 400 | 500 | 500 | 500 |
滑块下平面距工作台的最大距离 Max distance from bottom surface of slide block to worktable | mm | 500 | 550 | 600 | 700 | 800 | 800 | 800 |
工作台尺寸(左右×前后)Worktable size(Right to left ×Front to back ) | mm | 600×450 | 650×500 | 650×500 | 700×550 | 800×650 | 800×700 | 900*900 |
液体最大工作压力Max work pressure of liquid | Mpa | 13 | 12 | 16 | 20 | 25 | 25 | 25 |
滑块下行速度Descent speed of slide block | mm/s | 40 | 48 | 48 | 33 | 32 | 27 | 27 |
滑块回程速度Return speed of slide block | mm/s | 50 | 70 | 70 | 65 | 50 | 40 | 50 |
喉深Throat depth | mm | 250 | 300 | 260 | 320 | 350 | 350 | 400 |
外形尺寸(长×宽×高)Overall Dimensions (length×width × height) | mm | 1100×800 | 1100×850 ×2100 | 1200×830 | 1500×800 | 1600×1200 ×2600 | 1800×1400 | 1900*1500* 3100 |
电机功率Electric Power | kw | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11.5 |
重量Weight | kg | 1000 | 1300 | 1800 | 3500 | 5500 | 6500 | 7000 |
