液压冲床厂家

您的当前位置: 首 页 >> 产品中心 >> 液压冲床

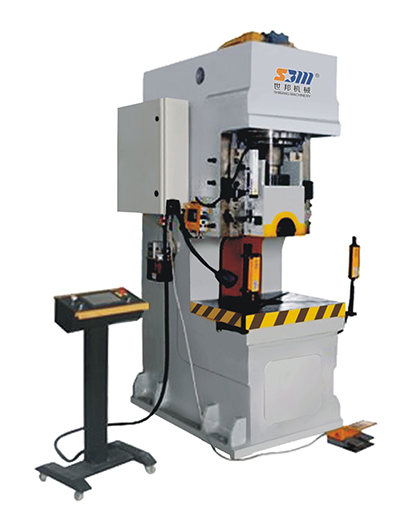

液压冲床厂家

  • 所属分类:液压冲床

  • 点击次数:
  • 发布日期:2019/03/14
  • 规格:
  • 类型:
  • 在线询价
  • 详细介绍

产品性能特点:

液压冲床主要是承担各种不同厚度板材(0.1mm-20mm)的冲床、折弯、剪切、压装、矫平、挤时间压、拉伸成型等工作。调模精度达到0.1mm,便捷、可靠。软到位冲床技术,提高产品质量及模具使用寿命。智能化控制,具有调整、自动、半自(半自动可分为定程单次和定压单次两种工艺)三种操作方式。滑块的工作压力、空载快速下行和慢速工进的行程范围可根据工艺需要进行调整。机器结构设计合理,便于实现自动化生产,降低成本,提升效率。先进的设计理念,低嗓音,低消耗,节能环保。  选配: 光电保掮装置、送料机(空气、机械及CNC各类)、料架、矫平机、机械手、模具照明装置。

选配:
光电安全保掮装置、送料机(空气、机械及CNC各类)、料架、矫平机、机械手、模具照明装置。



Product performance characteristics:
The machine is mainly to undertake a variety of different thickness of the plate - 20 mm (0.1 mm) of the punch, bending, shear, pressure equipment, leveling, extrusion molding time pressure, stretching, etc. The variable precision is 0.1 mm, safe, convenient and reliable. Soft punch technology, improve product quality and the service life of the mold. Intelligent control, to ensure the accuracy and security of the machine and stop. With adjustment, automatic, half since (semi-automatic can be divided into cheng is single and constant pressure single two process) three kinds of operating mode. The slider working pressure, the no-load fast descending and slow work into travel range can be adjusted according to the process. Machine structure design is reasonable, easy to realize automation of production, reduce costs, improve efficiency. Advanced design idea, low voice, low consumption, energy conservation and environmental protection.
optional :
Photoelectric safety insurance shoulder device, feeder (air, machinery and CNC), rack, leveling machine, manipulator, mold lighting device.



参数名称

Parameter

单位

Unit

液压冲床 Hydraulic Punching Press

ZBJ-D-25

ZBJ-D-40

ZBJ-D-60

ZBJ-D-80

ZBJ-D-100

ZBJ-D-125

ZBJ-D-160

ZBJ-D-200

ZBJ-D-250

公称力

Nominal pressure

KN

250

400

600

800

1000

1250

1600

2000

2500

滑块行程

Stroke of Slide block

mm

125

125

125

125

150

150

200

200

250

最快速度

Max speed

mm

100

100

100

90

90

90

80

80

70

行程次数

Numbers of stroke

min

35-80

35-80

35-80

35-80

20-80

20-80

20-80

20-80

20-80

最大装模高度

Max die height

mm

300

400

500

500

600

600

700

700

800

滑块中心至机身距离

Between slide center and frame

mm

300

300

350

350

400

400

450

450

450

工作台面尺寸

Work table size

mm

300*400

300*500

320*500

500*800

500*1000

650*1100

700*1100

700*1200

800*1200

电机总功率Electric Power

kw

4

4

5.5

7.5

7.5

11

11

15

15

液压冲床价格
